concrete floor shine

Floor Expansion Joint Repairs

Concrete Floor Expansion Joint Resealing

Floor joints act as a controlled cracks in concrete slabs and are positioned to allow the floor to move. Shrinkage from drying and thermal changes over time are the main causes of floor joint movement. Diamond Grind uses rigid concrete sealants that provide support and protection with the facing edges yet are flexible enough to accommodate the opening of the joint and remain bonded to at least one face.

Due to movement, joints are often the primary source of maintenance and repair for industrial and warehouse floors with the facing edges of joints constantly vulnerable to damage from hard-wheeled mobile plants and equipment. Joints with crumbling edges are commonplace in most industrial and warehouse floors and should be seen as an early indication of more serious long-term damage. Because of that, it is important to contact us as soon as you suspect there is a problem with flooring in your commercial property to prevent bigger issues.

By resealing floor expansion joints, Diamond Grind can reduce and even prevent further concrete edge crumbling thereby eliminating the need for expensive remedial work in the future. Joint resealing is a relatively simple repair however, the process works best when the edge damage is detected early. If more serious damage has already occurred, reconstructing the joint may be required. (see opposite).

floor expansion joint
The Problem

Solid wheels and heavy loads transported by mobile plant cause major damage to the joint edge.

The Solution

The new durable joint system provides a smooth surface for the transition from one surface to another, reducing maintenance costs.

Obligation FREE Site Visit

Well maintained floor joints reduce the overall maintenance and servicing costs of commercial floors. To arrange for an obligation FREE site visit please call Diamond Grind on 1800 587 172.

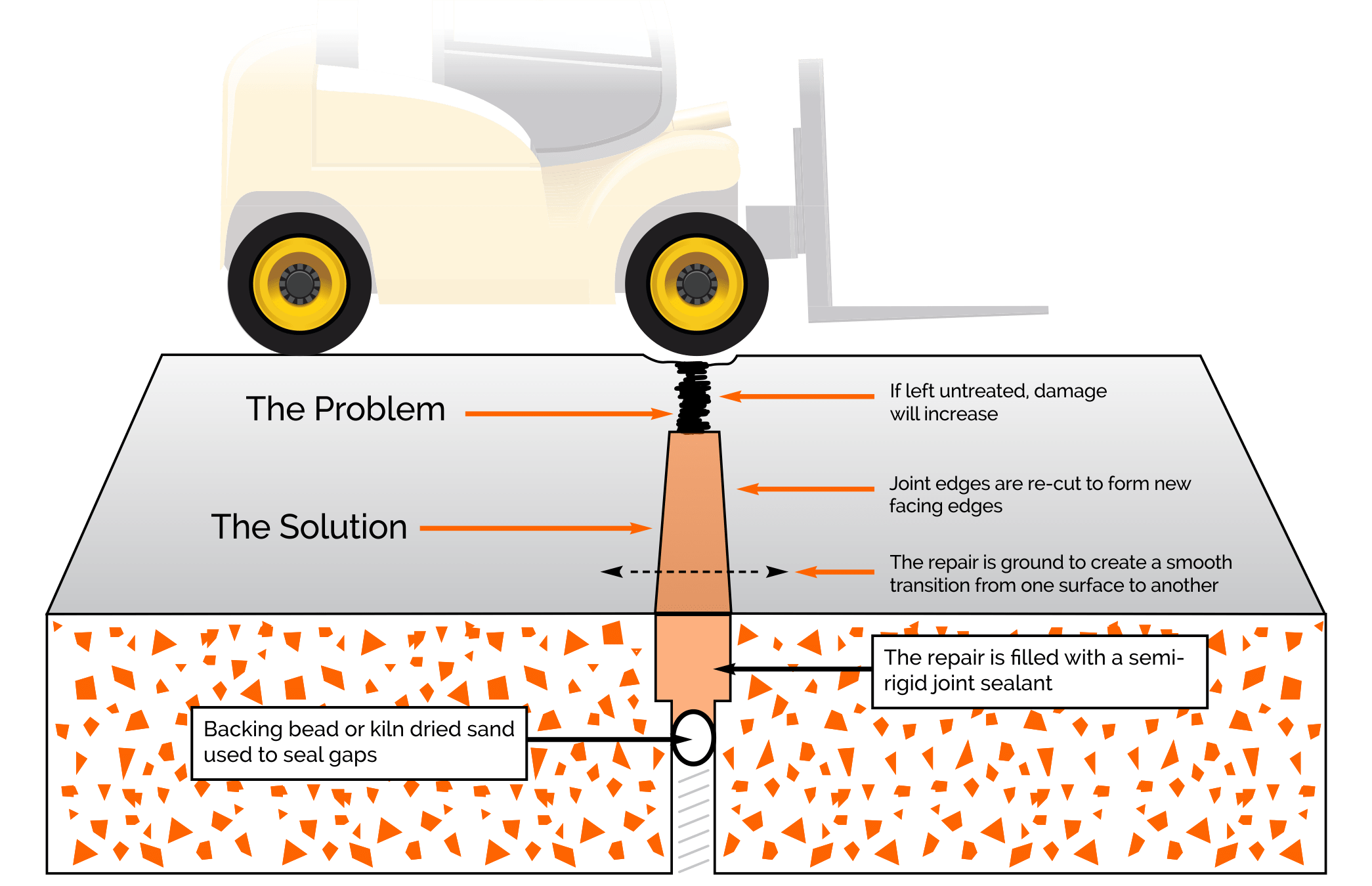

floor expansion joint repair diagram
The Problem

Mobile plant traffic impacts remaining ‘soft’ edges and sealant causing further crumbling of facing edges.

The Solution

Damaged joint is reduced by introducing a semi- rigid joint sealant. Mobile plant now transition from surface to surface smoothly.

Concrete Floor Expansion Joint Repair

Early detection and repair of damaged floor expansion joints significantly impacts the overall maintenance cost of a commercial floor. The joint sealant should be inspected regularly to ensure it is still performing adequately by protecting the joint edge. We offer regular checkups that will prevent costly and time-consuming repairs.

Once the damage has progressed past the scope of re-sealing the joint, it becomes necessary to reconstruct the facing edges. This should be done using a heavy-duty fast-cure repair mortar designed for industrial floor use. While cement materials are less expensive, they are brittle and ultimately fail to become costlier in the long run due to the need for continual repair.

A wide joint increases the risk of edge deformation and fracture caused by the deflection of the joint sealant under load. Consequently, it is important to minimise the width of the joint opening at the surface level. Diamond Grind’s method of repair allows for a 50mm wide ‘traditional expansion joint’ to be replaced with a neat 5mm wide, fully sealed saw cut. Each repair is ground flush with the adjacent floor surface to ensure that wheeled traffic smoothly transitions over the repaired joint.

Seamless Floor Restoration with Diamond Grind

We have carefully developed the repair process and guarantee professional and high-quality service. Our team of specialists is equipped with professional tools and efficient vacuum systems to ensure no airborne dust during the repair. Besides that, joint areas that we fix will be ground smooth, so the traffic across the property will not be interrupted.

Our team has been providing this type of service for more than two decades, and we can perform even complex repairs with minimum disruptions. You and your employees can get back to your working routine quickly because we guarantee that all the jobs will be done swiftly and even before the deadline.

If you suspect there is a damaged joint in your industrial property or you need us to conduct regular inspections, you can call or fill out the online form on our website, and our customer representatives will get back to you with all the information you need. Choose the best, and contact Diamond Grind experts today.

Contact Diamond Grind by Email or 1800 587 172

for an obligation FREE consultation.
